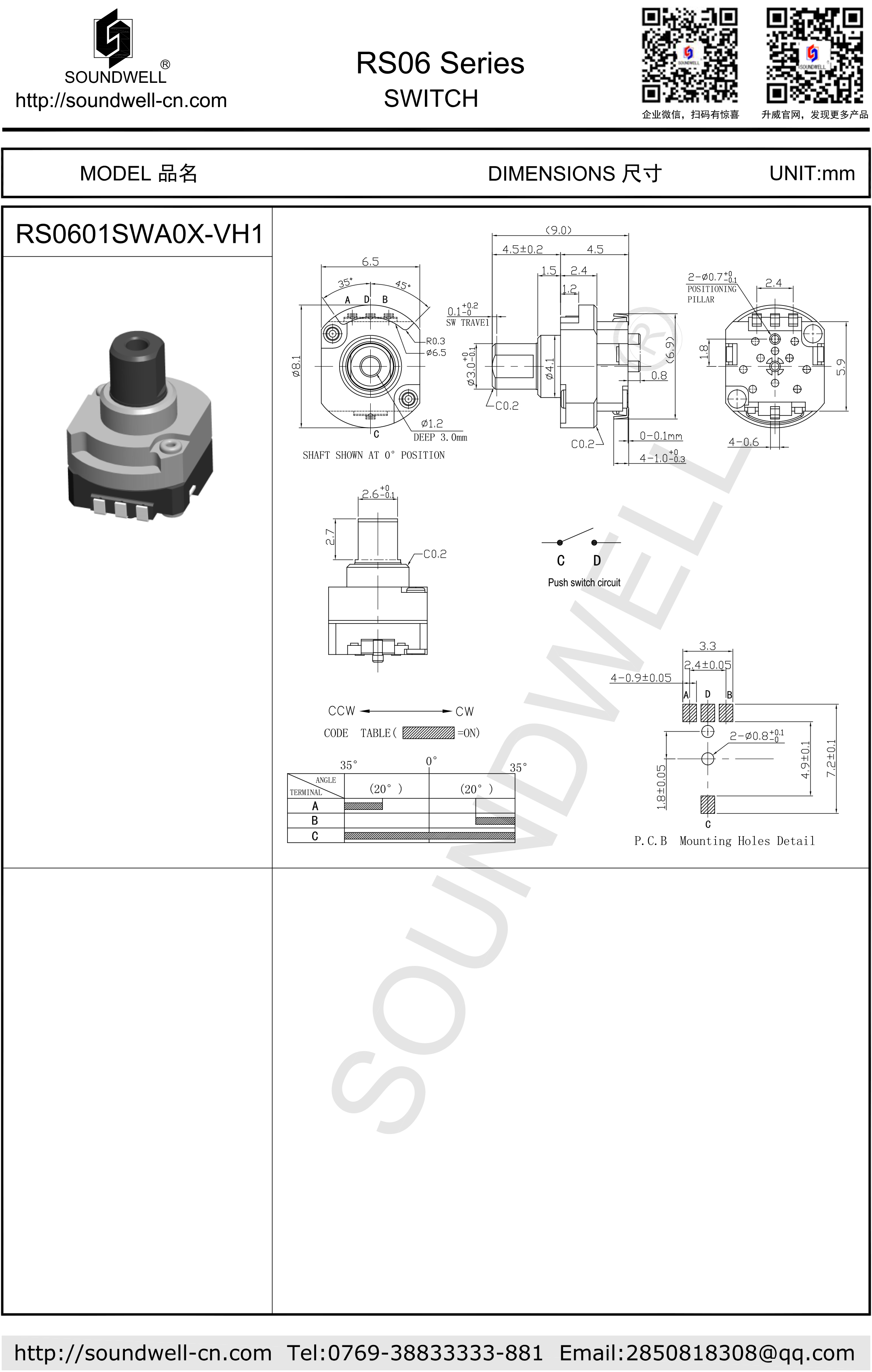

| Encoder model: | RS06 |
| name: | With push reset switch |
| Main specifications: |
Dimensions: 6.5mmX8.1mm; |
| Features: |
Small size, good sealing and high reliability. |
| Application areas: | This product is currently suitable for volume control and function switching of portable radios, small speakers and other electronic products. |
一、MECHANICAL CHARACTERISTIC
1、Rotational torque ：10~85gf.cm
2、Rotational angle ：CW：35°±10° CCW： 35°±10°
二、ELECTRICAL CHARACTERISTIC
1、Contact resistance ：小于1Ω
2、Rating power ：DC5V 10mA
3、Insulation resistance ：50M? 1 Minute at DC 110V
4、Dielectric voltage ：1 Minute at AC 110V
三、PUSH SWITCH PORTION
1、Operating force of switch：300~500gf
2、Contact resistance：100mΩ Max
3、Rating power ：DC5V 10mA
4、Insulation resistance ：50M? 1 Minute at DC 110V
5、Dielectric voltage ：1 Minute at AC 110V
四、ENDURANCE CHARACTERISTIC
1、Rotational life ：20,000 cycles Min
2、Switch operating life：20,000 cycles Min
Note:In this catalog,if some parame ters lr drawings are different from the "Approval sheet",it's subject to the "Approval sheet".
