| Potentiometer model： | SV05 series |
| Name： | 5 mm Travel Slide potentiometer |
| Main Specifications: | Travel: 5mm Resistance Tolerance: ±20% Rated power: 0.005W Operating temperature: -10℃~70℃ Operating life: 5,000 Min |
| Product Features： |
Small size with high precision; PCB which can save the whole machine space. |
| Applications： | It is mainly used for volume control of in-line headphones. |
ONE、MECHANICAL CHARACTERISTIC
1. Sliding force: 10~100gf.cm
2. Slide travel: 5±0.5mm
3. Lever Stop strength: 3Kgf
TWO、ELECTRICAL CHARACTERISTIC
1. Total Resistance Range: 1KΩ＜R＜1MΩ, ±20%; 1KΩ≥R or R≥1MΩ, ±30%
2. Resistance Taper: B
3. Power rating: 0.005W
4. Insulation Resistance: 100 MΩ 1 Min at DC 250V
5. Dielectric Voltage: 1 Minute at AC100V
THREE、ENDURANCE CHARACTERISTIC
1. Operating Life: 5,000 Min

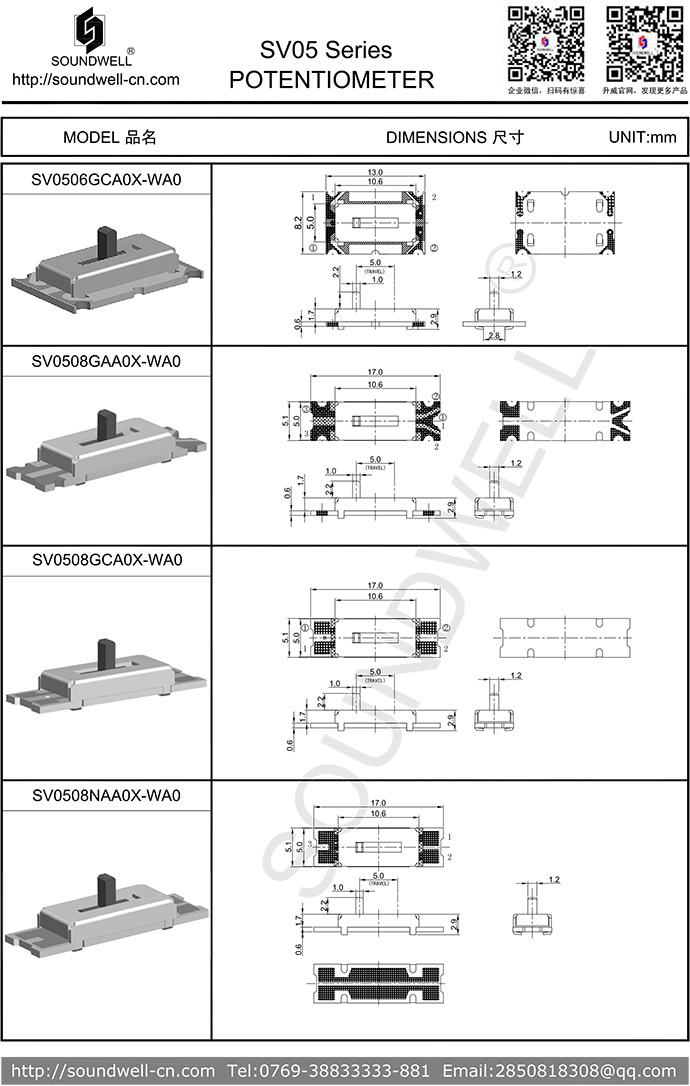

Note: In this catalog, if some parameters or drawings are different from the "Approval sheet", it's subject to the "Approval sheet".
.jpg)
